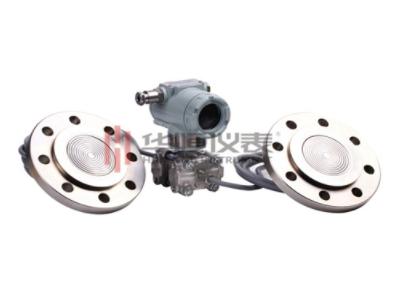

差壓式液位計廣泛應用于石油、化工、冶金、電力、食品、造紙、醫藥、紡織等工業生產過程檢測控制系統中，檢測液體差壓、表壓、絕壓，以及開口或密閉容器內液體的液位。該產品將被測信號轉換成4～20mADC輸出信號（智能型可帶Hart協議通訊），與其他單元組合儀表或工業控制計算機配合，組成檢測、記錄、控制等工業自動化系統。



　　Differential pressure level gauges are widely used in the detection and control systems of petroleum,chemical,metallurgy,electric power,food,paper,medicine,textile and other industrial production processes to detect liquid differential pressure,gauge pressure,absolute pressure,and in open or closed containers The level of the liquid.The product converts the measured signal into a 4-20mADC output signal(intelligent type can communicate with Hart protocol),and cooperates with other unit combination meters or industrial control computers to form industrial automation systems such as detection,recording,and control.



　　差壓式液位計減少誤差方法:



　　Differential pressure level gauge reduces error method:



　　1.導壓管應盡可能短些;



　　1.The pressure guiding tube should be as short as possible;



　　2.當測量液體或蒸汽時，導壓管應向上連接到流程工藝管道，其斜度應不小于1/12;



　　2.When measuring liquid or steam,the pressure guiding tube should be connected upward to the process pipeline,and its slope should not be less than 1/12;



　　3.對于氣體測量時，導壓管應向下連接到流程工藝管道，其斜度應不小于1/12;



　　3.For gas measurement,the pressure guiding tube should be connected downward to the process pipeline,and its slope should not be less than 1/12;



　　4.液體導壓管道的布設要避免出現高點，氣體導壓管的布設要避免出現低點;



　　4.The arrangement of liquid pressure guiding pipes should avoid high points,and the arrangement of gas pressure guiding pipes should avoid low points;



　　5.兩導壓管應保持相同的溫度;



　　5.The two pressure guiding tubes should maintain the same temperature;



　　6.為避免磨擦影響，導壓管的口徑應足夠大;



　　6.In order to avoid the influence of friction,the caliber of the pressure guiding tube should be large enough;



　　7.充滿液體的導壓管中應無氣體存在;



　　7.There should be no gas in the pressure pipe filled with liquid;



　　8.當使用隔離液時，兩邊導壓管的液位要相同。



　　8.When using spacer fluid,the liquid level of the pressure guiding tube on both sides should be the same.



　　華恒儀表可以為您提供專業的差壓式液位計選型建議和可靠的差壓式液位計產品，有任何疑問可以致電180 9235 6836，我們會有專業的技術人員幫您解答，希望能帶給您幫助！



　　Huaheng Instrument can provide you with professional differential pressure level gauge selection suggestions and reliable differential pressure level gauge products.If you have any questions,you can call 180 9235 6836,and we will have professional technicians to help you answer.Hope Can bring you help！
